The Dactyl-ManuForm Keyboard [5x6]
16 commits 1 branch 1 tag 14 MiB
  • C 74.2%
  • Makefile 17.5%
  • Shell 8.3%
Find a file
He4eT d4e7e78f1d Mouse layer: move mouse buttons to the home row
2021-08-03 15:50:49 +05:00
images images: layers 2020-10-12 18:36:12 +05:00
keymap Mouse layer: move mouse buttons to the home row 2021-08-03 15:50:49 +05:00
preview_generator Layout images generator 2021-08-03 11:54:29 +05:00
qmk_firmware@36d8d7df5a QMK: use firmware as submodule 2021-06-24 16:11:02 +05:00
things body: CAD files 2020-10-05 16:21:57 +05:00
.gitmodules QMK: use firmware as submodule 2021-06-24 16:11:02 +05:00
Makefile Layout images generator 2021-08-03 11:54:29 +05:00
oddkb.json QMK Keymap JSON file 2020-10-12 18:35:31 +05:00
README.md Update README.md 2021-06-24 18:15:59 +05:00

README.md

My personal Dactyl-ManuForm. This repository contains all the resources used to build this keyboard.

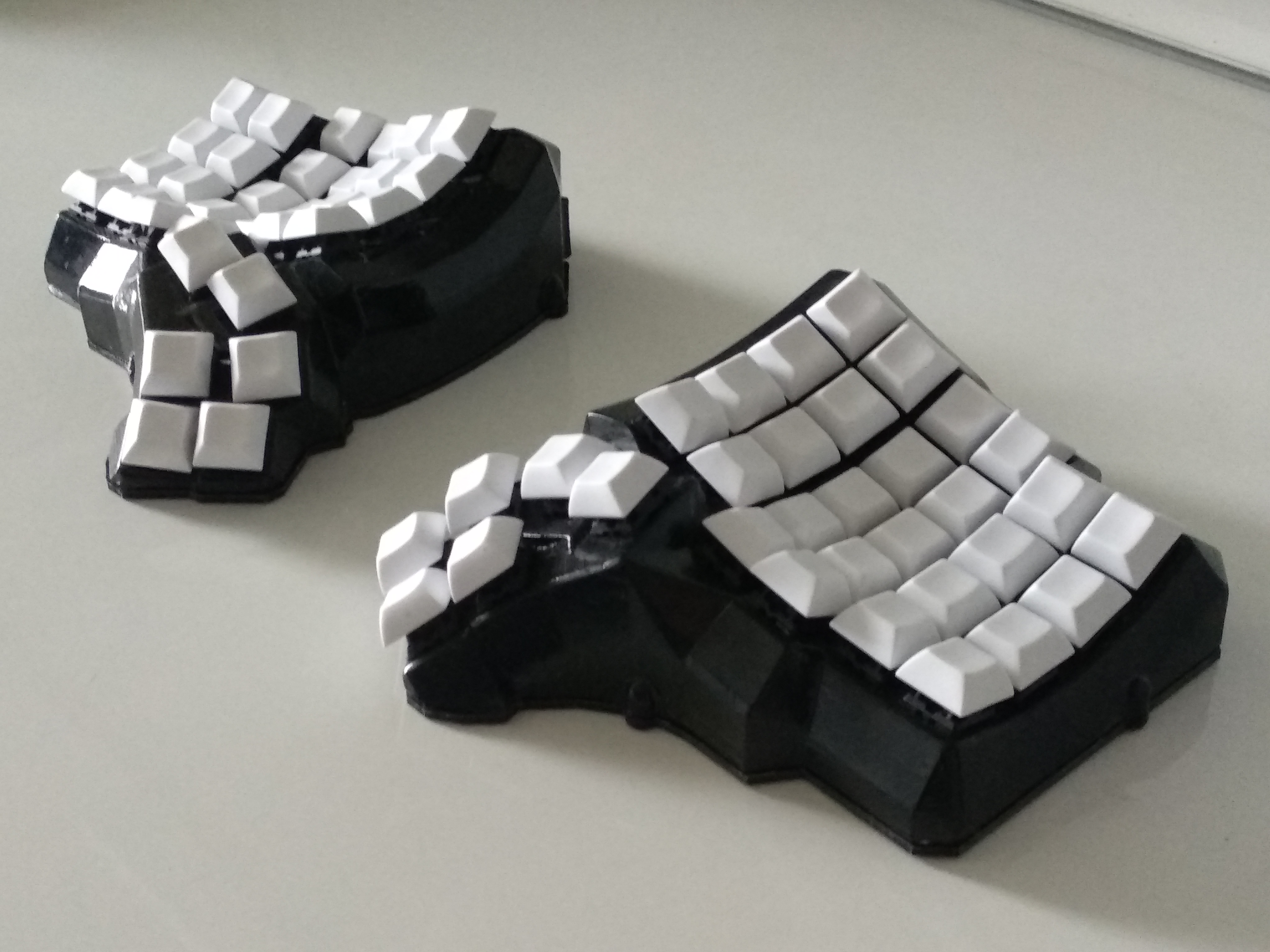

overview

Layout

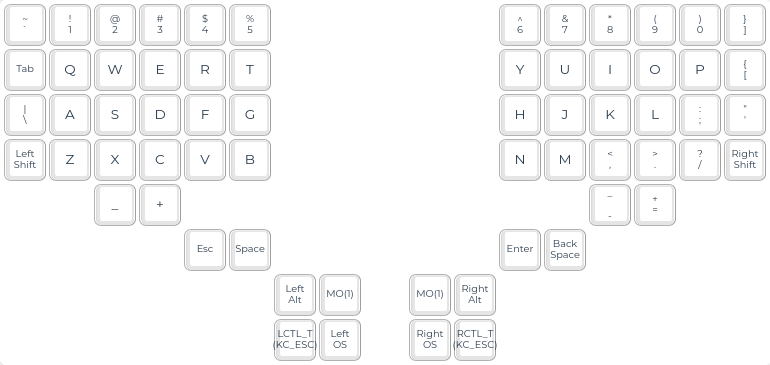

Layer 0 [qwerty]

qwerty layer

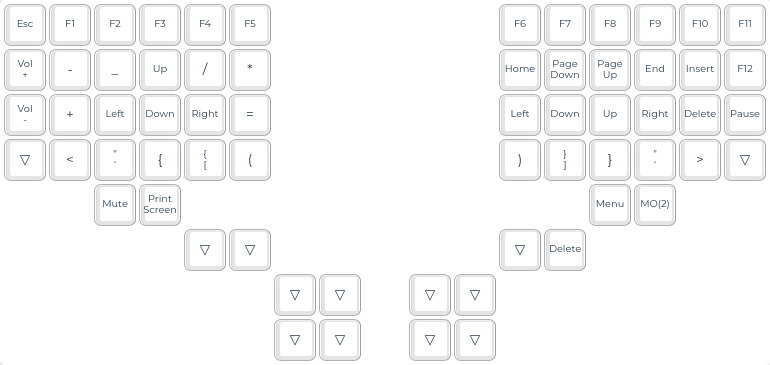

Layer 1 [navigation]

qwerty layer

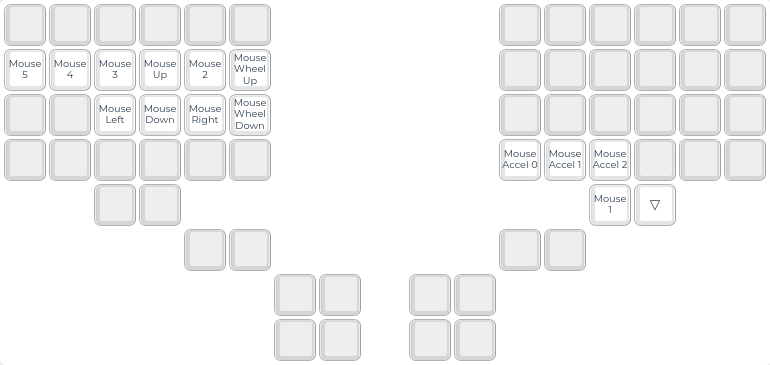

Layer 2 [mouse]

qwerty layer

Flashing

I used the Docker version of QMK. You have to flash each of the halves of the keyboard.

git clone --recurse-submodules git@github.com:He4eT/oddkb.git
cd oddkb
make flash

Build

Links
