The Dactyl-ManuForm Keyboard [5x6]
12 commits 1 branch 1 tag 14 MiB
  • C 74.2%
  • Makefile 17.5%
  • Shell 8.3%
Find a file
He4eT 5133e0dca8 QMK: use firmware as submodule
2021-06-24 16:11:02 +05:00
images images: layers 2020-10-12 18:36:12 +05:00
keymap keymap: QMK files 2020-10-12 18:35:53 +05:00
qmk_firmware@36d8d7df5a QMK: use firmware as submodule 2021-06-24 16:11:02 +05:00
things body: CAD files 2020-10-05 16:21:57 +05:00
.gitmodules QMK: use firmware as submodule 2021-06-24 16:11:02 +05:00
oddkb.json QMK Keymap JSON file 2020-10-12 18:35:31 +05:00
README.md Update README.md 2020-10-12 19:20:18 +05:00

README.md

My personal Dactyl-ManuForm. This repository contains all the resources used to build this keyboard.

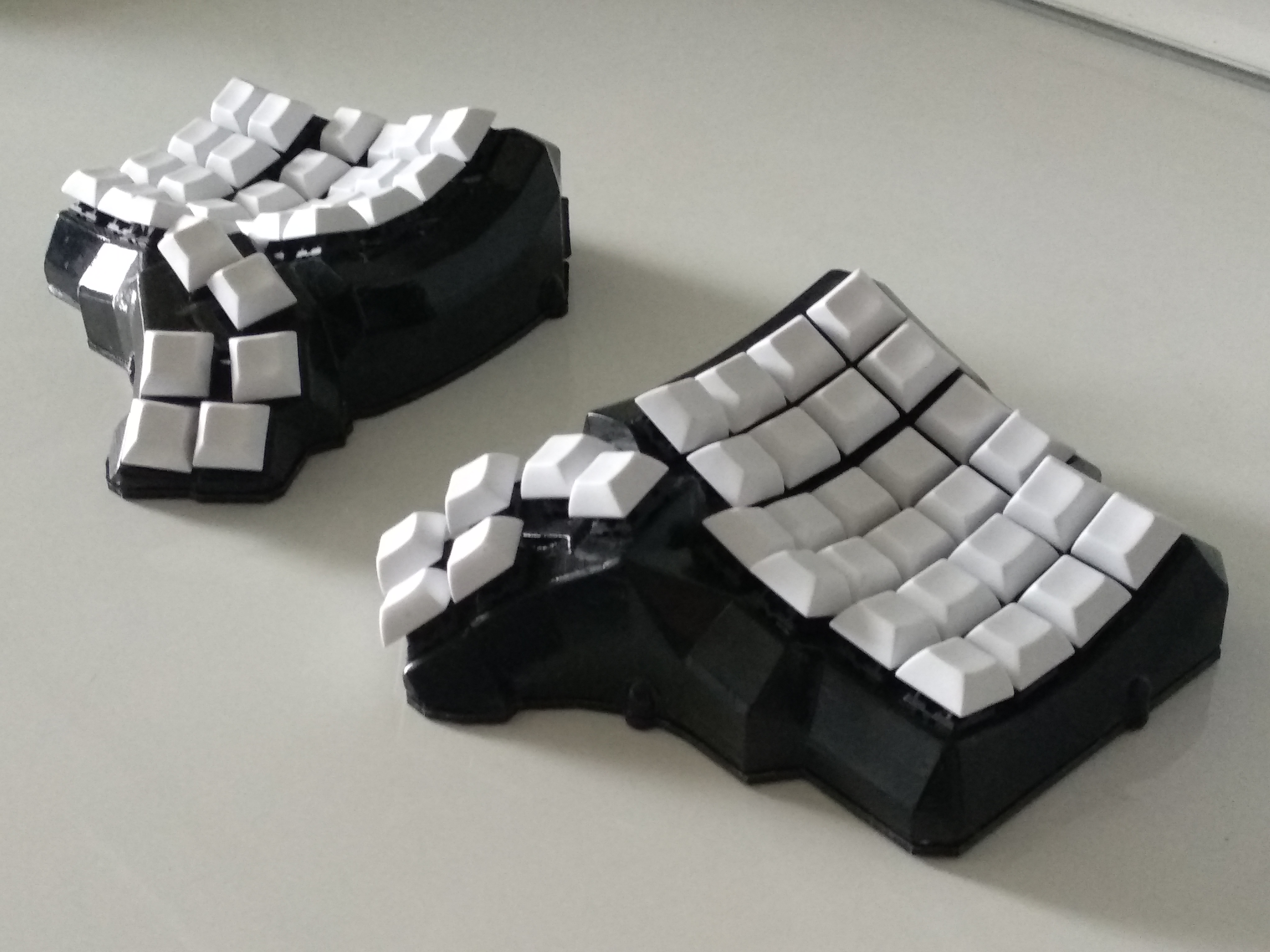

overview

Layout

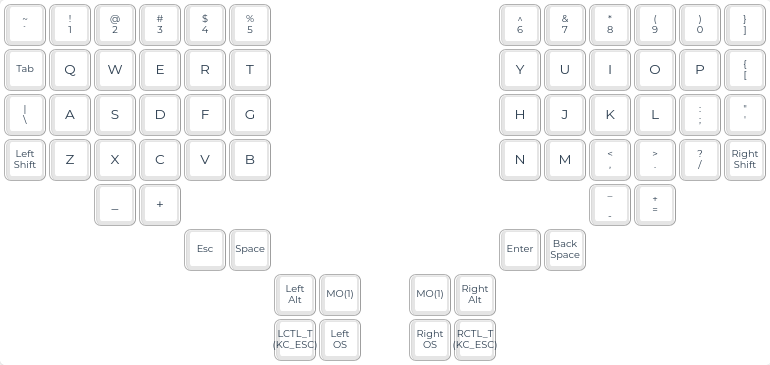

Layer 0 [qwerty]

qwerty layer

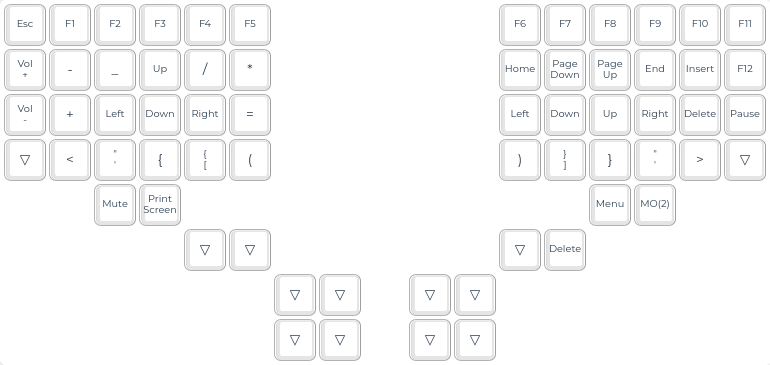

Layer 1 [navigation]

qwerty layer

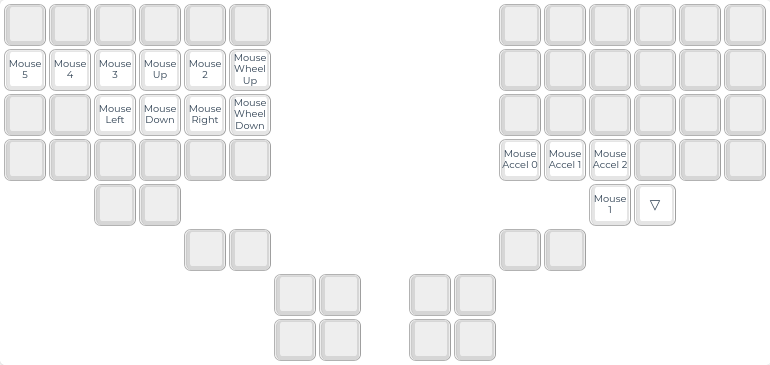

Layer 2 [mouse]

qwerty layer

Firmware

I used the Docker version of QMK Toolbox.
You have to flash each of the halves of the keyboard.

mkdir ~/qmk_firmware/keyboards/handwired/dactyl_manuform/5x6/keymaps/oddkb/
cp ./keymap/* ~/qmk_firmware/keyboards/handwired/dactyl_manuform/5x6/keymaps/oddkb/

cd ~/qmk_firmware/

sudo ./util/docker_build.sh handwired/dactyl_manuform/5x6:oddkb:avrdude

Build

Links
