README.md

Cantor MX Tastatura

It's my personal layout for the custom build of the Cantor MX Keyboard by the Decentrala comunity.

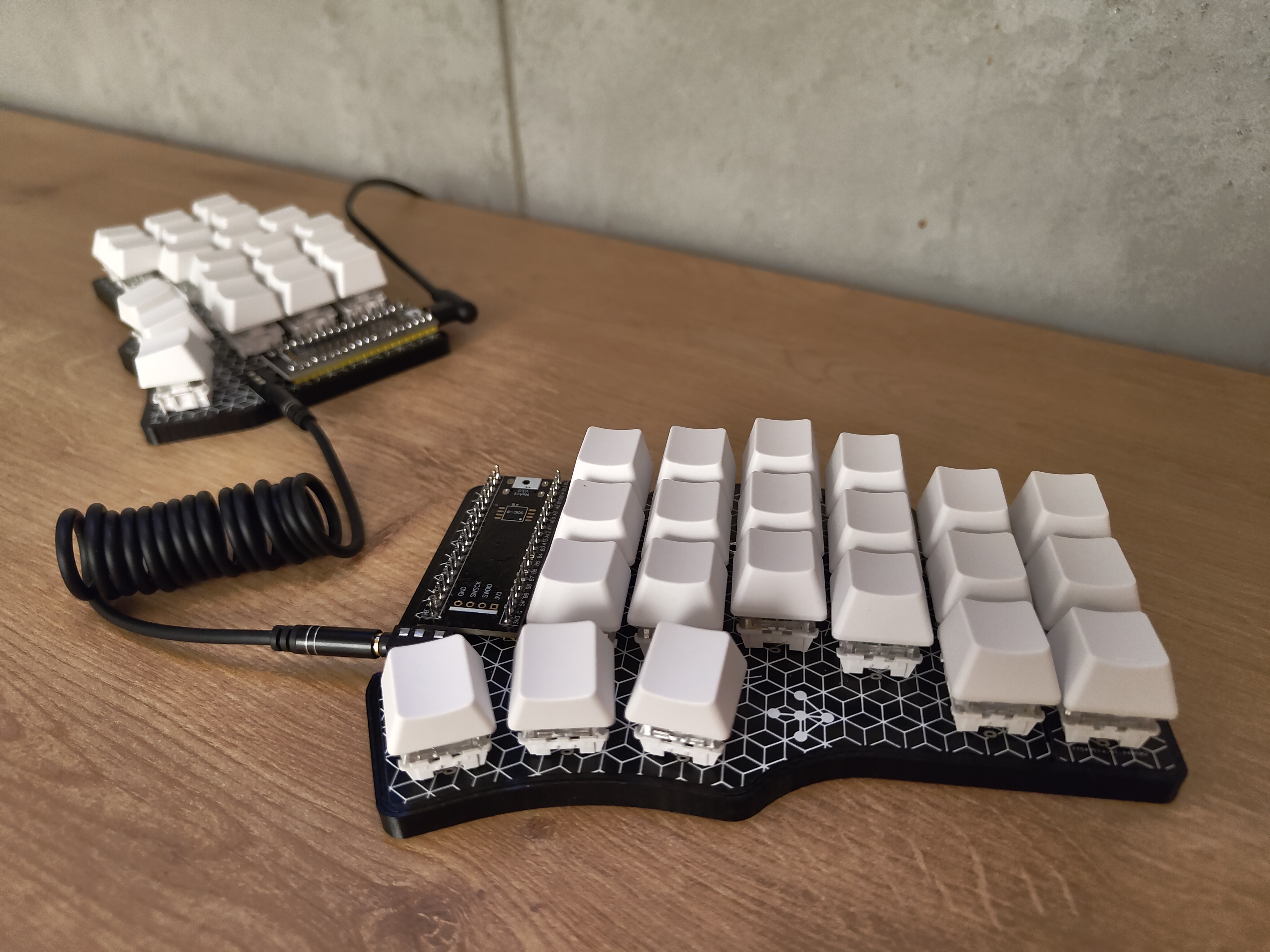

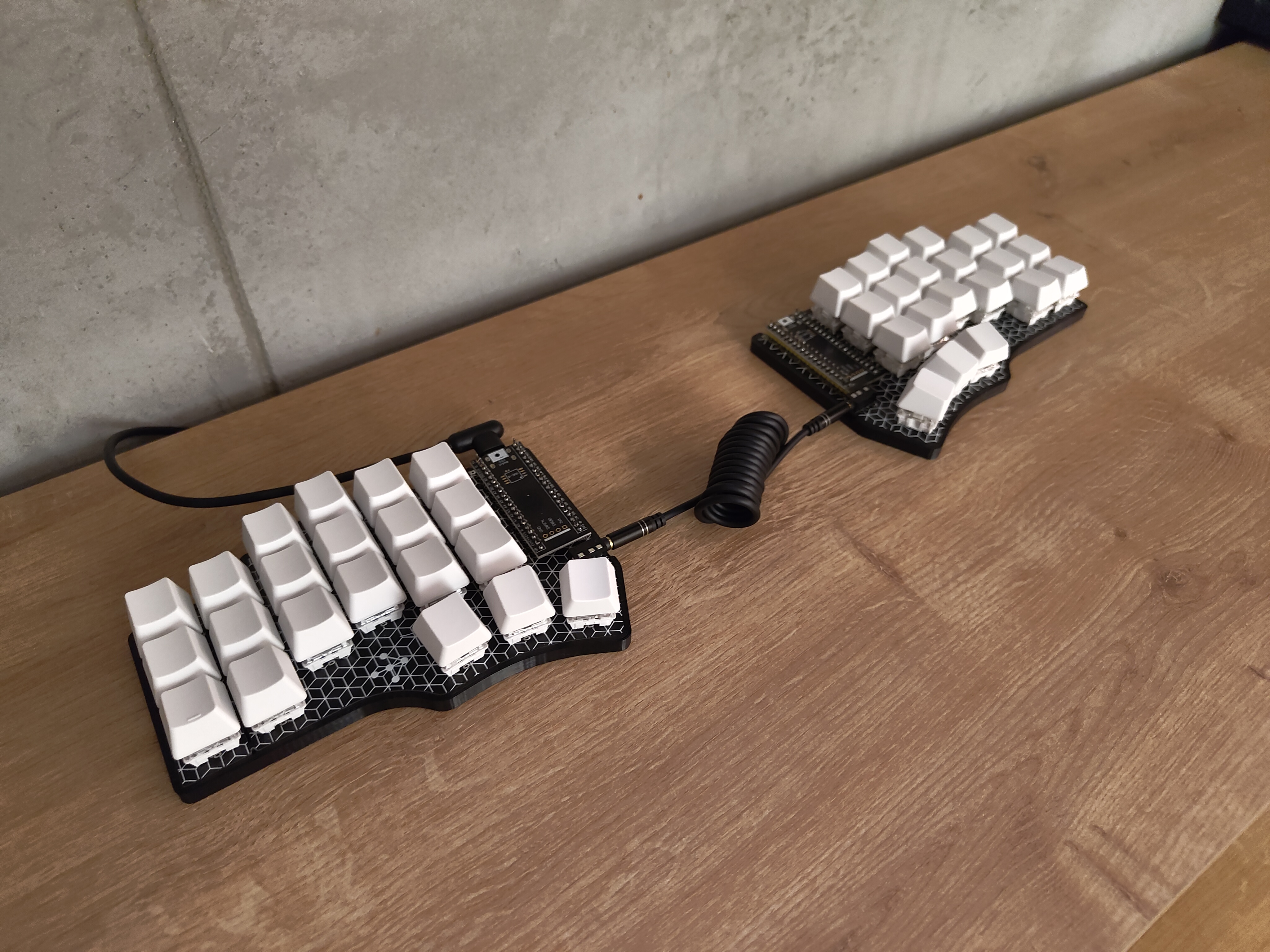

Overview Overview Alternative

"Tastatura" is the Serbian word for "keyboard".

Initial Flash

  • Clone the Vial repository:
    git clone --recurse-submodules git@github.com:vial-kb/vial-qmk.git
cd vial-qmk
  • Optional Change the layer count in the config:
    vial-qmk/keyboards/cantor/keymaps/vial/config.h
  • Connect the controller to your computer using a USB cable
  • Start the flashing process for the controller (Docker required):
    sudo util/docker_build.sh cantor:vial:flash
  • Use the onboard BOOT0 and NRST button to put the board into bootloader mode:
    • press and hold the BOOT0 button
    • press and release NRST (reset) button to power cycle the processor
    • release BOOT0 button
    • For additional details, refer to: STM32 Black Pill
  • Repeat the flashing process for the second controller.
  • Download the Vial configurator: https://get.vial.today/
  • Linux Only Configure udev rules for the first launch: https://get.vial.today/manual/linux-udev.html
  • Open the Vial configurator.

Layout

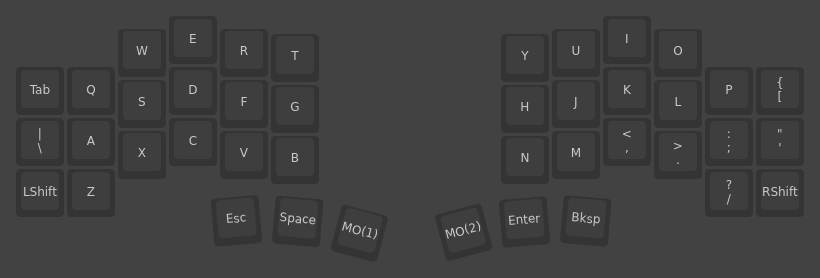

Base Layer

Base Layer

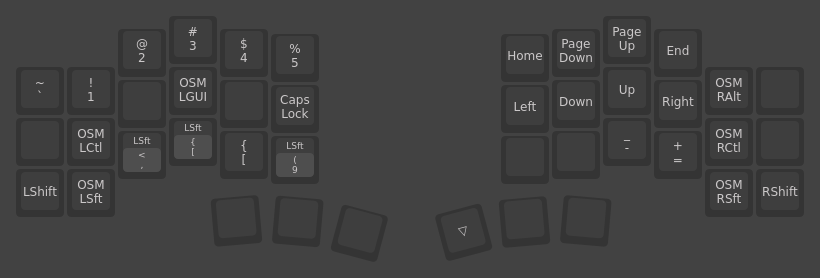

Right Hand Layer

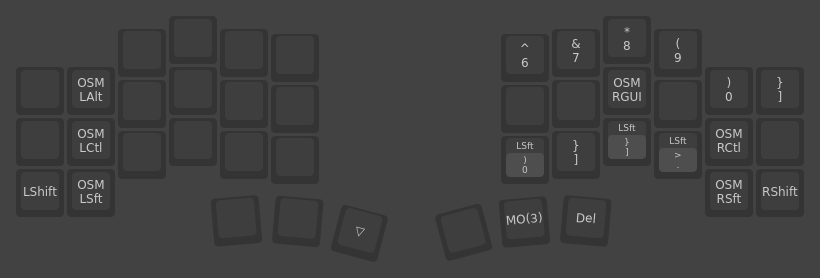

Left Hand Layer

Left Hand Layer

Right Hand Layer

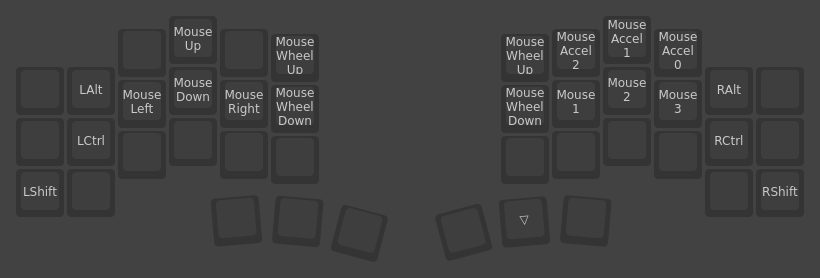

Mouse Layer

Mouse Layer

Case

The Cantor MX Slim Case is a remix of the Cantor MX Case by @JellyTitan.
